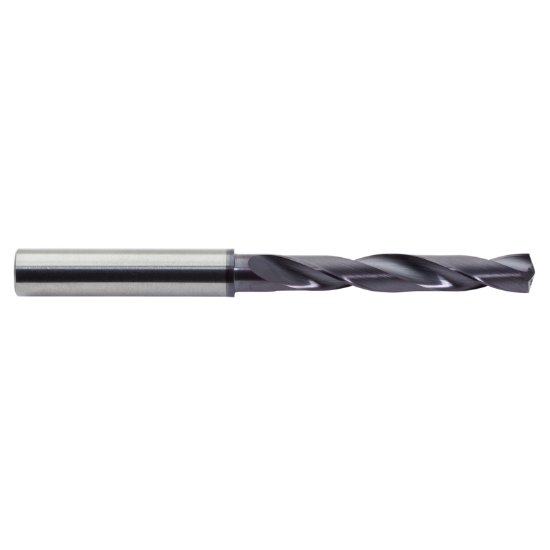

Picture of M.A. Ford 2XDCR6875A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.687 Dia 0.703 Shank 6.220 OAL 2 Flute 3.740 Flute Length Carbide AlTiN

M.A. Ford 2XDCR6875A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.687 Dia 0.703 Shank 6.220 OAL 2 Flute 3.740 Flute Length Carbide AlTiN

Part Number: MAF02810 ISO: 2XDCR6875A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1116514
Vendor: Sussex Tool and Supply
$403.40
M.A. FORD 2XDCR6875A DRILL 11/16 COOL THRU RE Carbide AlTiN Twister XD® 5.0XD Flute 3.7400 95.00MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.7031 17.86MM
Overall Length 6.2200 157.99MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7031 17.86MM - 45/64
Flutes/Inserts 2
Tool Dia 0.6875 17.46MM - 11/16
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 3.7400 95.00MM
Cut Dia Min 0.6875 17.46MM - 11/16
Dia Deep 5.0x Dia
