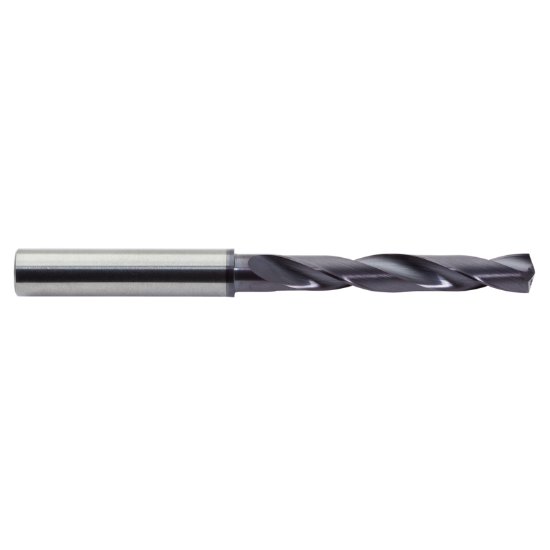

Picture of M.A. Ford 2XDCR5938A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.593 Dia 0.625 Shank 5.750 OAL 2 Flute 3.230 Flute Length Carbide AlTiN

M.A. Ford 2XDCR5938A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.593 Dia 0.625 Shank 5.750 OAL 2 Flute 3.230 Flute Length Carbide AlTiN

Part Number: MAF02792 ISO: 2XDCR5938A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1116498
Vendor: Sussex Tool and Supply
$316.49
M.A. FORD 2XDCR5938A DRILL 19/32 COOL THRU RE Carbide AlTiN Twister XD® 5.0XD Flute 3.2300 82.04MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.6250 15.88MM
Overall Length 5.7500 146.05MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.5938 15.08MM - 19/32
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 3.2300 82.04MM
Cut Dia Min 0.5938 15.08MM - 19/32
Dia Deep 5.0x Dia
