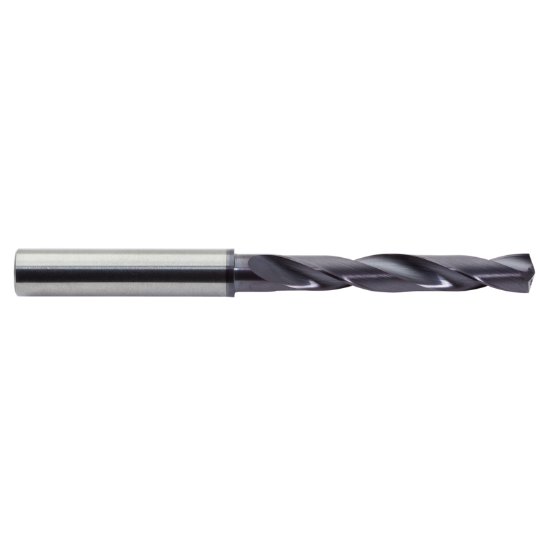

Picture of M.A. Ford 2XDCR5905A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.590 Dia 0.629 Shank 5.511 OAL 2 Flute 3.150 Flute Length Carbide AlTiN

M.A. Ford 2XDCR5905A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.590 Dia 0.629 Shank 5.511 OAL 2 Flute 3.150 Flute Length Carbide AlTiN

Part Number: MAF02790 ISO: 2XDCR5905A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1116496
Vendor: Sussex Tool and Supply
$289.60
M.A. FORD 2XDCR5905A DRILL 15.0MM COOLTHRU RE Carbide AlTiN Twister XD® 5.0XD Flute 3.1500 80.01MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.6299 16.00MM
Overall Length 5.5118 140.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.5906 15.00MM
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 3.1500 80.01MM
Cut Dia Min 0.5906 15.00MM
Dia Deep 5.0x Dia
