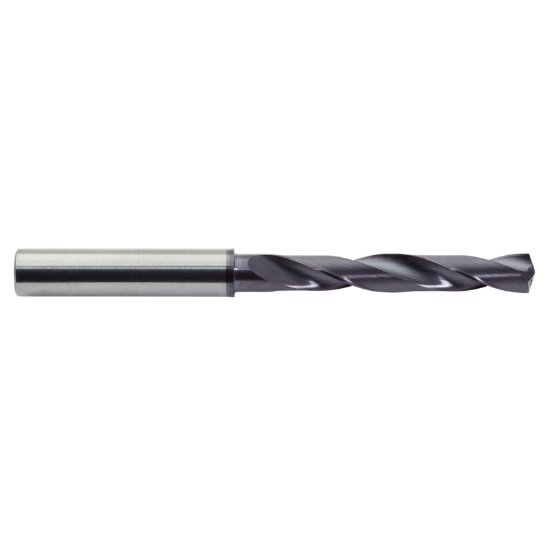

Picture of M.A. Ford 2XDCR5625A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.562 Dia 0.625 Shank 5.510 OAL 2 Flute 3.150 Flute Length Carbide AlTiN

M.A. Ford 2XDCR5625A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.562 Dia 0.625 Shank 5.510 OAL 2 Flute 3.150 Flute Length Carbide AlTiN

Part Number: MAF02784 ISO: 2XDCR5625A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1116492
Vendor: Sussex Tool and Supply
$289.60
M.A. FORD 2XDCR5625A DRILL 9/16 COOL THRU REG Carbide AlTiN Twister XD® 5.0XD Flute 3.1500 80.01MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.6250 15.88MM
Overall Length 5.5100 139.95MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.5625 14.29MM - 9/16
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 3.1500 80.01MM
Cut Dia Min 0.5625 14.29MM - 9/16
Dia Deep 5.0x Dia
