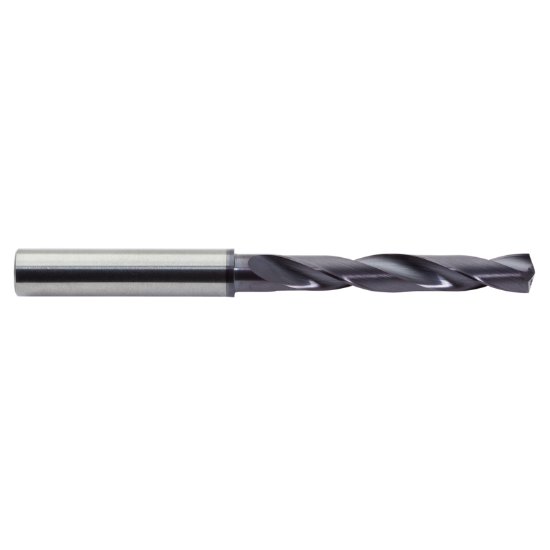

Picture of M.A. Ford 2XDCR5512A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.551 Dia 0.551 Shank 5.275 OAL 2 Flute 3.031 Flute Length Carbide AlTiN

M.A. Ford 2XDCR5512A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.551 Dia 0.551 Shank 5.275 OAL 2 Flute 3.031 Flute Length Carbide AlTiN

Part Number: MAF02782 ISO: 2XDCR5512A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1116490
Vendor: Sussex Tool and Supply
$283.40
M.A. FORD 2XDCR5512A DRILL 14.0MM COOLTHRU RE Carbide AlTiN Twister XD® 5.0XD Flute 3.0310 76.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.5512 14.00MM
Overall Length 5.2755 134.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5512 14.00MM
Flutes/Inserts 2
Tool Dia 0.5512 14.00MM
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 3.0310 76.99MM
Cut Dia Min 0.5512 14.00MM
Dia Deep 5.0x Dia
