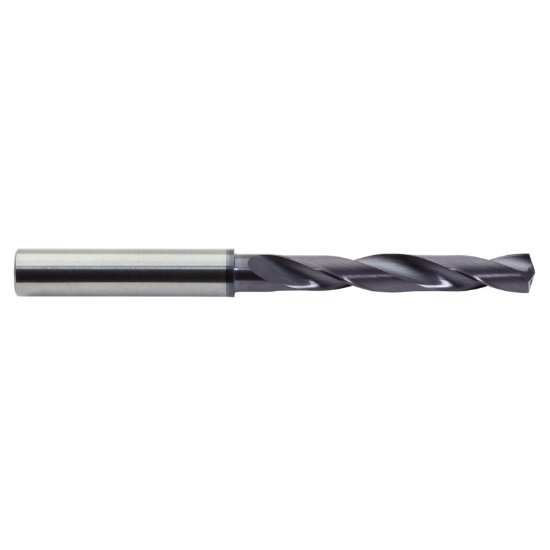

Picture of M.A. Ford 2XDCR5156A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.515 Dia 0.546 Shank 5.280 OAL 2 Flute 3.030 Flute Length Carbide AlTiN

M.A. Ford 2XDCR5156A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.515 Dia 0.546 Shank 5.280 OAL 2 Flute 3.030 Flute Length Carbide AlTiN

Part Number: MAF02774 ISO: 2XDCR5156A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1116485
Vendor: Sussex Tool and Supply
$283.40
M.A. FORD 2XDCR5156A DRILL 33/64 COOL THRU RE Carbide AlTiN Twister XD® 5.0XD Flute 3.0300 76.96MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.5469 13.89MM
Overall Length 5.2800 134.11MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5469 13.89MM - 35/64
Flutes/Inserts 2
Tool Dia 0.5156 13.10MM - 33/64
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 3.0300 76.96MM
Cut Dia Min 0.5156 13.10MM - 33/64
Dia Deep 5.0x Dia
