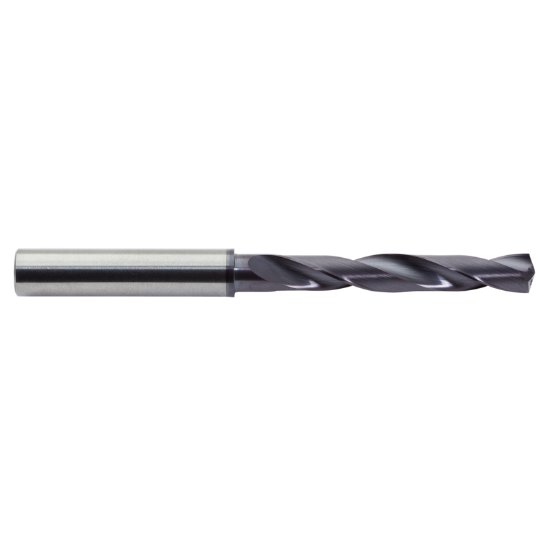

Picture of M.A. Ford 2XDCR4375A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.437 Dia 0.468 Shank 4.720 OAL 2 Flute 2.600 Flute Length Carbide AlTiN

M.A. Ford 2XDCR4375A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.437 Dia 0.468 Shank 4.720 OAL 2 Flute 2.600 Flute Length Carbide AlTiN

Part Number: MAF02750 ISO: 2XDCR4375A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1116462
Vendor: Sussex Tool and Supply
$205.83
M.A. FORD 2XDCR4375A DRILL 7/16 COOL THRU REG Carbide AlTiN Twister XD® 5.0XD Flute 2.6000 66.04MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.4688 11.91MM
Overall Length 4.7200 119.89MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.4688 11.91MM - 15/32
Flutes/Inserts 2
Tool Dia 0.4375 11.11MM - 7/16
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 2.6000 66.04MM
Cut Dia Min 0.4375 11.11MM - 7/16
Dia Deep 5.0x Dia
