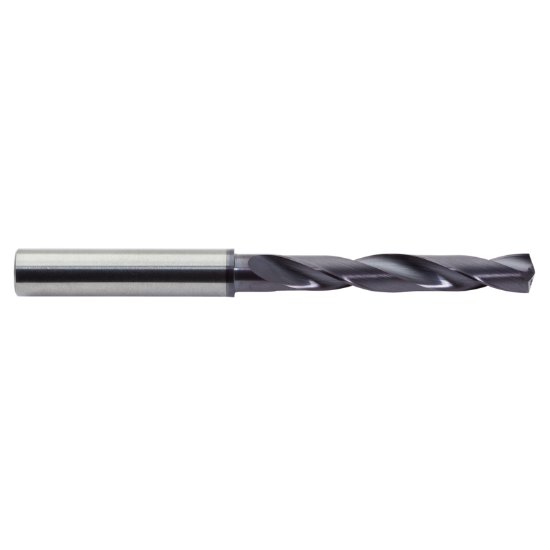

Picture of M.A. Ford 2XDCR2610A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.261 Dia 0.312 Shank 3.580 OAL 2 Flute 1.890 Flute Length Carbide AlTiN

M.A. Ford 2XDCR2610A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.261 Dia 0.312 Shank 3.580 OAL 2 Flute 1.890 Flute Length Carbide AlTiN

Part Number: MAF02672 ISO: 2XDCR2610A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1116383
Vendor: Sussex Tool and Supply
$92.58
M.A. FORD 2XDCR2610A DRILL G COOL THRU REGULA Carbide AlTiN Twister XD® 5.0XD Flute 1.8900 48.01MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.3125 7.94MM
Overall Length 3.5800 90.93MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 2
Tool Dia 0.2610 6.63MM - G
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 1.8900 48.01MM
Cut Dia Min 0.2610 6.63MM - G
Dia Deep 5.0x Dia
