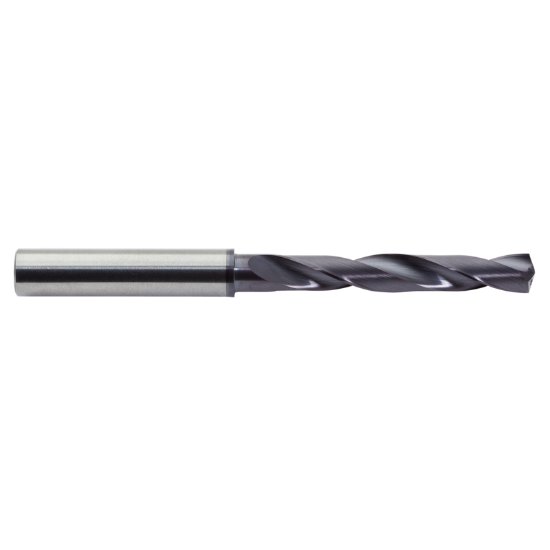

Picture of M.A. Ford 2XDCR2500A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.250 Dia 0.250 Shank 3.300 OAL 2 Flute 1.740 Flute Length Carbide AlTiN

M.A. Ford 2XDCR2500A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.250 Dia 0.250 Shank 3.300 OAL 2 Flute 1.740 Flute Length Carbide AlTiN

Part Number: MAF02664 ISO: 2XDCR2500A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1116375
Vendor: Sussex Tool and Supply
$92.03
M.A. FORD 2XDCR2500A DRILL 1/4 COOL THRU REGU Carbide AlTiN Twister XD® 5.0XD Flute 1.7400 44.20MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.2500 6.35MM
Overall Length 3.3000 83.82MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 2
Tool Dia 0.2500 6.35MM - 1/4 - E
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 1.7400 44.20MM
Cut Dia Min 0.2500 6.35MM - 1/4 - E
Dia Deep 5.0x Dia
