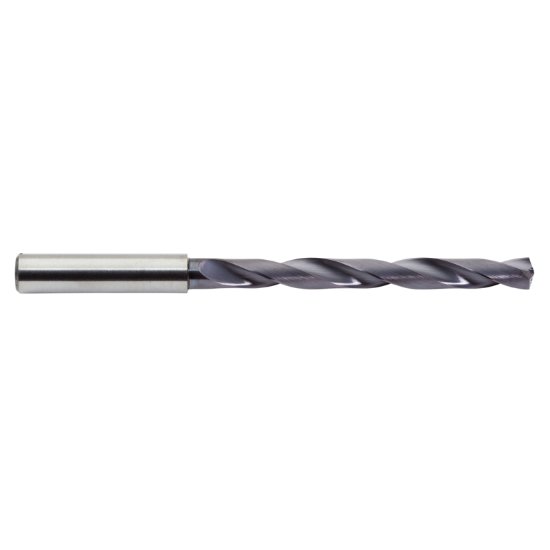

Picture of M.A. Ford 2XDCL3386A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.338 Dia 0.393 Shank 5.000 OAL 2 Flute 3.149 Flute Length Carbide AlTiN

M.A. Ford 2XDCL3386A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.338 Dia 0.393 Shank 5.000 OAL 2 Flute 3.149 Flute Length Carbide AlTiN

Part Number: MAF02957 ISO: 2XDCL3386A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1116271
Vendor: Sussex Tool and Supply
$169.62
M.A. FORD 2XDCL3386A DRILL 8.6MM COOL THRU LO Carbide AlTiN Twister XD® 7.0XD Flute 3.1490 79.98MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.3937 10.00MM
Overall Length 5.0000 127.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 2
Tool Dia 0.3386 8.60MM
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 3.1490 79.98MM
Cut Dia Min 0.3386 8.60MM
Dia Deep 7.0x Dia
