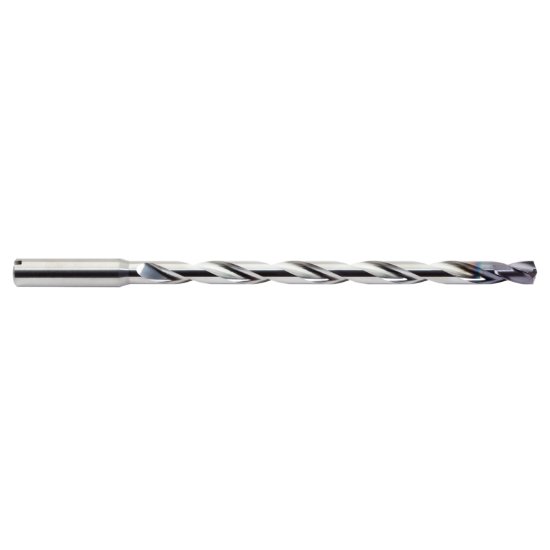

Picture of M.A. Ford 2XDCE1968A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.196 Dia 0.196 Shank 6.417 OAL 2 Flute 4.134 Flute Length Carbide AlTiN

M.A. Ford 2XDCE1968A Deep Hole Over 8Xd Coolant Thru Carbide 140° - 142° 0.196 Dia 0.196 Shank 6.417 OAL 2 Flute 4.134 Flute Length Carbide AlTiN

Part Number: MAF04332 ISO: 2XDCE1968A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1116159
Vendor: Sussex Tool and Supply
$381.09
M.A. FORD 2XDCE1968A 5.00MM XD DEEP HOLE DRL Carbide AlTiN Twister XD® 21.0XD Flute 4.1340 105.00MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.1969 5.00MM
Overall Length 6.4173 163.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.1969 5.00MM
Flutes/Inserts 2
Tool Dia 0.1969 5.00MM
Type Of Tool Drill
Included Angle 140° - 142°
Flute Length 4.1340 105.00MM
Cut Dia Min 0.1969 5.00MM
Dia Deep 21.0x Dia
