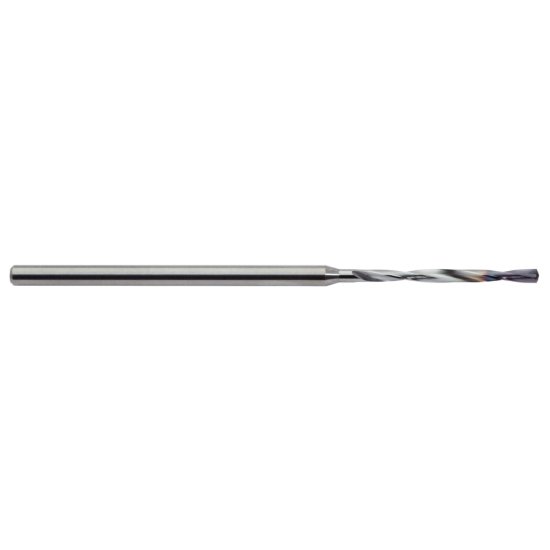

Picture of M.A. Ford 2MDCL0925A Deep Hole Over 8Xd Coolant Thru Carbide 140° 0.092 Dia 0.118 Shank 2.913 OAL 2 Flute 1.102 Flute Length Carbide AlTiN

M.A. Ford 2MDCL0925A Deep Hole Over 8Xd Coolant Thru Carbide 140° 0.092 Dia 0.118 Shank 2.913 OAL 2 Flute 1.102 Flute Length Carbide AlTiN

Part Number: MAF04212 ISO: 2MDCL0925A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1116146
Vendor: Sussex Tool and Supply
$100.49
M.A. FORD 2MDCL0925A 2.35MM X 28MM COOLANT Carbide AlTiN Twister® MD 10.0XD Flute 1.1020 27.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, <40HRC Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.1181 3.00MM
Overall Length 2.9134 74.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.1181 3.00MM
Flutes/Inserts 2
Tool Dia 0.0925 2.35MM
Type Of Tool Drill
Included Angle 140°
Flute Length 1.1020 27.99MM
Cut Dia Min 0.0925 2.35MM
Dia Deep 10.0x Dia
