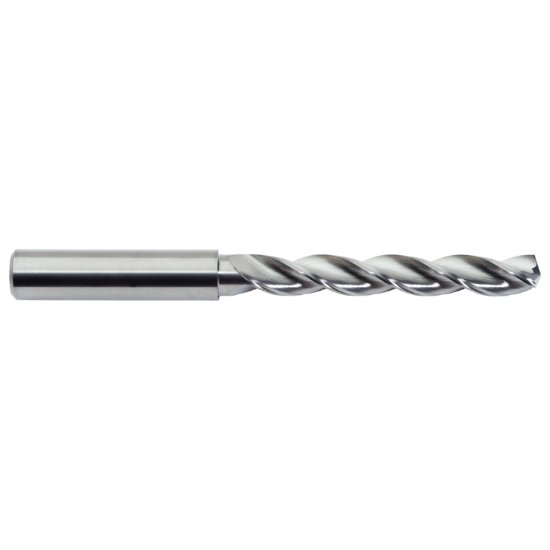

Picture of M.A. Ford 22937500 Carbide Drill Solid Carbide 144° 0.375 Dia 0.375 Shank 4.250 OAL 3 Flute 2.750 Flute Length Carbide

M.A. Ford 22937500 Carbide Drill Solid Carbide 144° 0.375 Dia 0.375 Shank 4.250 OAL 3 Flute 2.750 Flute Length Carbide

Part Number: MAF22920 ISO: 22937500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1117016
Vendor: Sussex Tool and Supply
$108.78
M.A. FORD 22937500 3/8 3 FLUTE DRILL Carbide Uncoated Twister® AL 5.0XD Flute 2.7500 69.85MM Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Aluminum, Brass, Copper, Plastic
Mach Side Connection Size 0.3750 9.53MM
Overall Length 4.2500 107.95MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 3
Tool Dia 0.3750 9.53MM - 3/8
Type Of Tool Drill
Flute Length 2.7500 69.85MM
Cut Dia Min 0.3750 9.53MM - 3/8
Dia Deep 5.0x Dia
