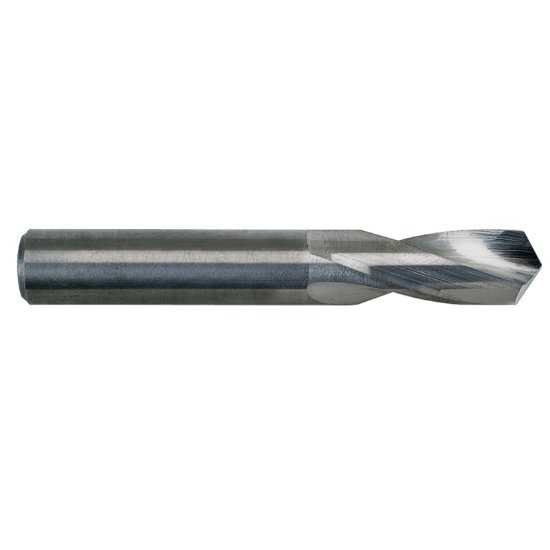

Picture of M.A. Ford 22655120A Carbide Drill Solid Carbide 118° 0.551 Dia 0.551 Shank 4.212 OAL 2 Flute 2.126 Flute Length Carbide AlTiN

M.A. Ford 22655120A Carbide Drill Solid Carbide 118° 0.551 Dia 0.551 Shank 4.212 OAL 2 Flute 2.126 Flute Length Carbide AlTiN

Part Number: MAF77576 ISO: 22655120A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1116786
Vendor: Sussex Tool and Supply
$143.56
M.A. FORD 22655120A 14.00MM DIN 6539 ALTIMA Carbide AlTiN Twister® GP 3.0XD Flute 2.1260 54.00MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.5512 14.00MM
Overall Length 4.2126 107.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5512 14.00MM
Flutes/Inserts 2
Tool Dia 0.5512 14.00MM
Type Of Tool Drill
Included Angle 118°
Flute Length 2.1260 54.00MM
Cut Dia Min 0.5512 14.00MM
Dia Deep 3.0x Dia
