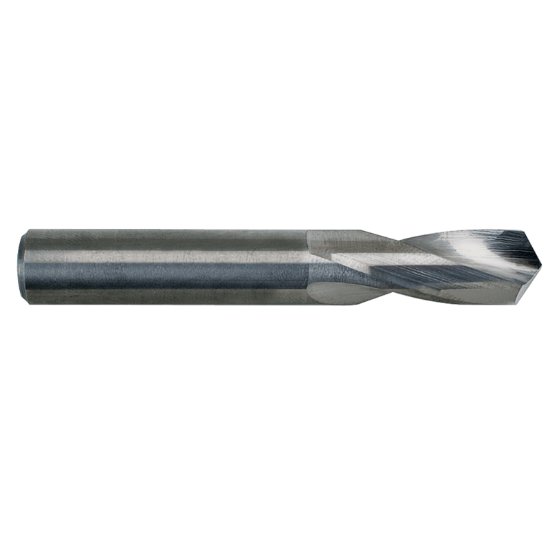

Picture of M.A. Ford 22653150 Carbide Drill Solid Carbide 118° 0.531 Dia 0.531 Shank 4.212 OAL 2 Flute 2.126 Flute Length Carbide

M.A. Ford 22653150 Carbide Drill Solid Carbide 118° 0.531 Dia 0.531 Shank 4.212 OAL 2 Flute 2.126 Flute Length Carbide

Part Number: MAF26704 ISO: 22653150

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1116784
Vendor: Sussex Tool and Supply
$120.57
M.A. FORD 22653150 13.50MM DIN 6539 10% CAR Carbide Uncoated Twister® GP 3.0XD Flute 2.1260 54.00MM Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Mach Side Connection Size 0.5315 13.50MM
Overall Length 4.2126 107.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5314 13.50MM
Flutes/Inserts 2
Tool Dia 0.5313 13.50MM - 17/32
Type Of Tool Drill
Included Angle 118°
Flute Length 2.1260 54.00MM
Cut Dia Min 0.5315 13.50MM
Dia Deep 3.0x Dia
