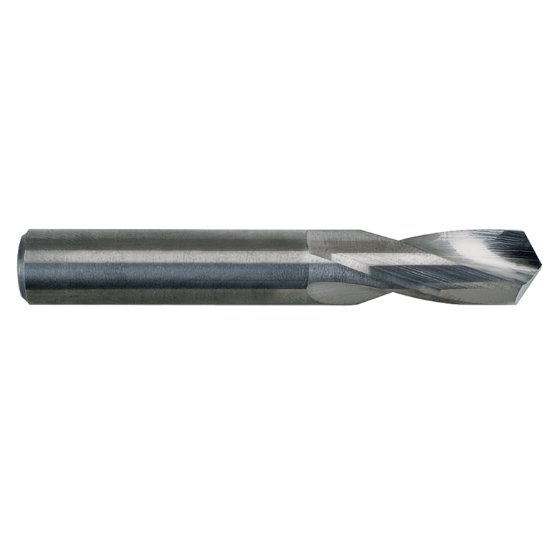

Picture of M.A. Ford 22651180A Carbide Drill Solid Carbide 118° 0.511 Dia 0.511 Shank 4.015 OAL 2 Flute 2.008 Flute Length Carbide AlTiN

M.A. Ford 22651180A Carbide Drill Solid Carbide 118° 0.511 Dia 0.511 Shank 4.015 OAL 2 Flute 2.008 Flute Length Carbide AlTiN

Part Number: MAF17224 ISO: 22651180A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1116783
Vendor: Sussex Tool and Supply
$136.35
M.A. FORD 22651180A 22651180 ALTIMA Carbide AlTiN Twister® GP 3.0XD Flute 2.0080 51.00MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.5118 13.00MM
Overall Length 4.0157 102.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5118 13.00MM
Flutes/Inserts 2
Tool Dia 0.5118 13.00MM
Type Of Tool Drill
Included Angle 118°
Flute Length 2.0080 51.00MM
Cut Dia Min 0.5118 13.00MM
Dia Deep 3.0x Dia
