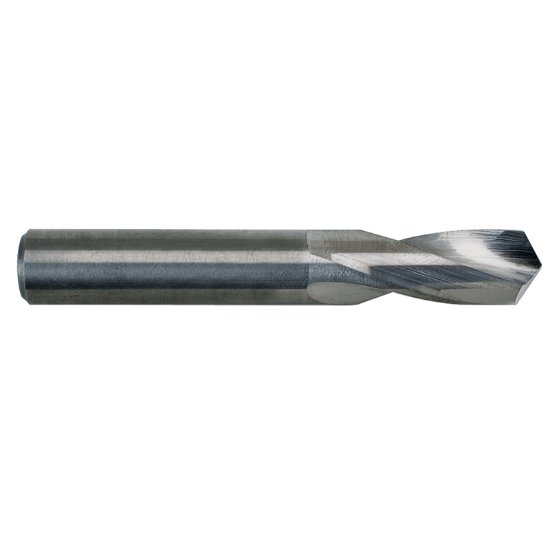

Picture of M.A. Ford 22651180 Carbide Drill Solid Carbide 118° 0.511 Dia 0.511 Shank 4.015 OAL 2 Flute 2.008 Flute Length Carbide

M.A. Ford 22651180 Carbide Drill Solid Carbide 118° 0.511 Dia 0.511 Shank 4.015 OAL 2 Flute 2.008 Flute Length Carbide

Part Number: MAF26695 ISO: 22651180

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1116782
Vendor: Sussex Tool and Supply
$117.48
M.A. FORD 22651180 13.00MM DIN 6539 10% CAR Carbide Uncoated Twister® GP 3.0XD Flute 2.0080 51.00MM Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Mach Side Connection Size 0.5118 13.00MM
Overall Length 4.0157 102.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5118 13.00MM
Flutes/Inserts 2
Tool Dia 0.5118 13.00MM
Type Of Tool Drill
Included Angle 118°
Flute Length 2.0080 51.00MM
Cut Dia Min 0.5118 13.00MM
Dia Deep 3.0x Dia
