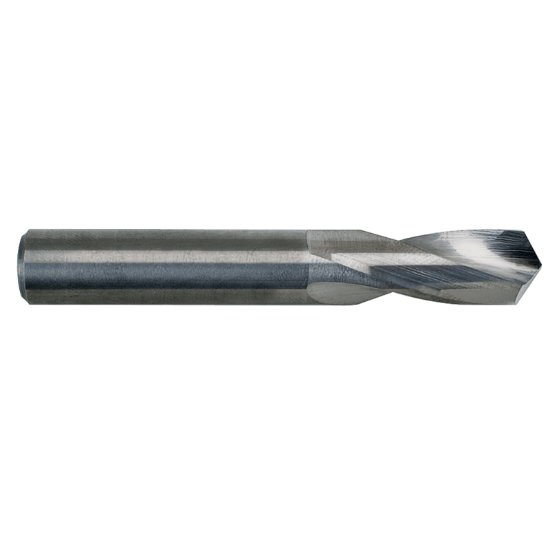

Picture of M.A. Ford 22649210 Carbide Drill Solid Carbide 118° 0.492 Dia 0.492 Shank 4.015 OAL 2 Flute 2.008 Flute Length Carbide

M.A. Ford 22649210 Carbide Drill Solid Carbide 118° 0.492 Dia 0.492 Shank 4.015 OAL 2 Flute 2.008 Flute Length Carbide

Part Number: MAF26689 ISO: 22649210

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1116780
Vendor: Sussex Tool and Supply
$93.99
M.A. FORD 22649210 12.50MM DIN 6539 10% CAR Carbide Uncoated Twister® GP 3.0XD Flute 2.0080 51.00MM Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Mach Side Connection Size 0.4921 12.50MM
Overall Length 4.0157 102.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4921 12.50MM
Flutes/Inserts 2
Tool Dia 0.4921 12.50MM
Type Of Tool Drill
Included Angle 118°
Flute Length 2.0080 51.00MM
Cut Dia Min 0.4921 12.50MM
Dia Deep 3.0x Dia
