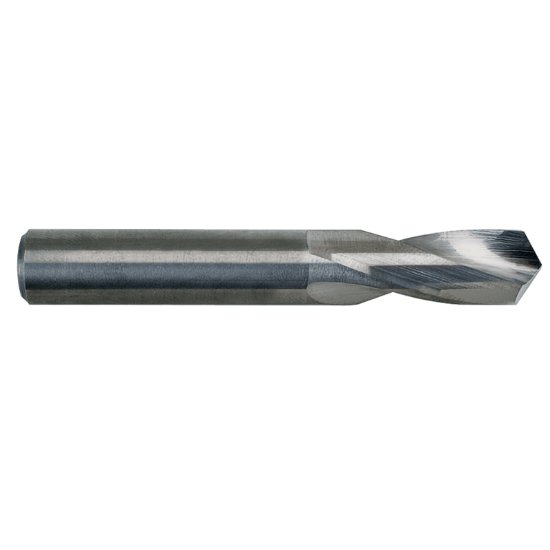

Picture of M.A. Ford 22646850 Carbide Drill Solid Carbide 118° 0.468 Dia 0.468 Shank 4.015 OAL 2 Flute 2.008 Flute Length Carbide

M.A. Ford 22646850 Carbide Drill Solid Carbide 118° 0.468 Dia 0.468 Shank 4.015 OAL 2 Flute 2.008 Flute Length Carbide

Part Number: MAF26677 ISO: 22646850

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1116777
Vendor: Sussex Tool and Supply
$90.70
M.A. FORD 22646850 11.90MM DIN 6539 10% CAR Carbide Uncoated Twister® GP 3.0XD Flute 2.0080 51.00MM Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Mach Side Connection Size 0.4685 11.90MM
Overall Length 4.0157 102.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4685 11.90MM
Flutes/Inserts 2
Tool Dia 0.4685 11.90MM
Type Of Tool Drill
Included Angle 118°
Flute Length 2.0080 51.00MM
Cut Dia Min 0.4685 11.90MM
Dia Deep 3.0x Dia
