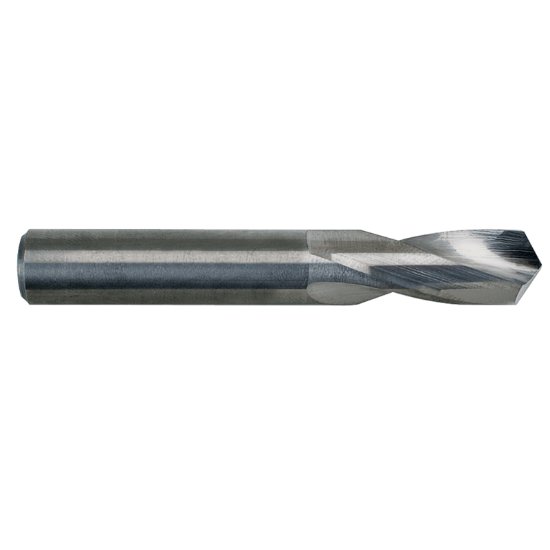

Picture of M.A. Ford 22645670 Carbide Drill Solid Carbide 118° 0.456 Dia 0.456 Shank 3.740 OAL 2 Flute 1.850 Flute Length Carbide

M.A. Ford 22645670 Carbide Drill Solid Carbide 118° 0.456 Dia 0.456 Shank 3.740 OAL 2 Flute 1.850 Flute Length Carbide

Part Number: MAF26668 ISO: 22645670

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1116772
Vendor: Sussex Tool and Supply
$87.71
M.A. FORD 22645670 11.60MM DIN 6539 10% CAR Carbide Uncoated Twister® GP 3.0XD Flute 1.8500 46.99MM Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Mach Side Connection Size 0.4567 11.60MM
Overall Length 3.7400 95.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4567 11.60MM
Flutes/Inserts 2
Tool Dia 0.4567 11.60MM
Type Of Tool Drill
Included Angle 118°
Flute Length 1.8500 46.99MM
Cut Dia Min 0.4567 11.60MM
Dia Deep 3.0x Dia
