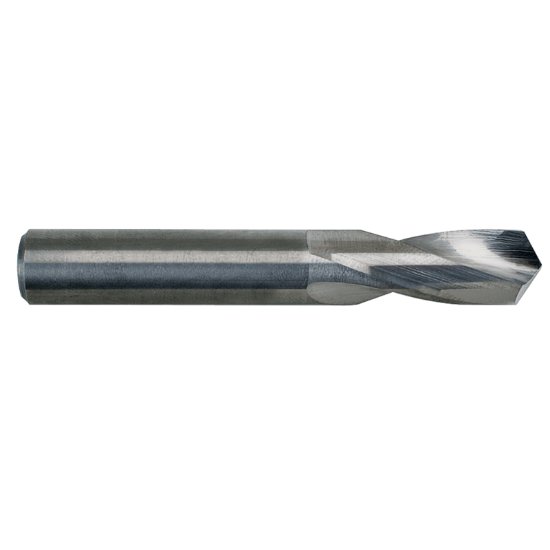

Picture of M.A. Ford 22643310C Carbide Drill Solid Carbide 118° 0.433 Dia 0.433 Shank 3.740 OAL 2 Flute 1.850 Flute Length Carbide TiCN

M.A. Ford 22643310C Carbide Drill Solid Carbide 118° 0.433 Dia 0.433 Shank 3.740 OAL 2 Flute 1.850 Flute Length Carbide TiCN

Part Number: MAF15256 ISO: 22643310C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1116764
Vendor: Sussex Tool and Supply
$94.83
M.A. FORD 22643310C 22643310 TICN COAT Carbide TiCN Twister® GP 3.0XD Flute 1.8500 46.99MM Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating TICN
Mach Side Connection Size 0.4331 11.00MM
Overall Length 3.7400 95.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4331 11.00MM
Flutes/Inserts 2
Tool Dia 0.4331 11.00MM
Type Of Tool Drill
Included Angle 118°
Flute Length 1.8500 46.99MM
Cut Dia Min 0.4331 11.00MM
Dia Deep 3.0x Dia
