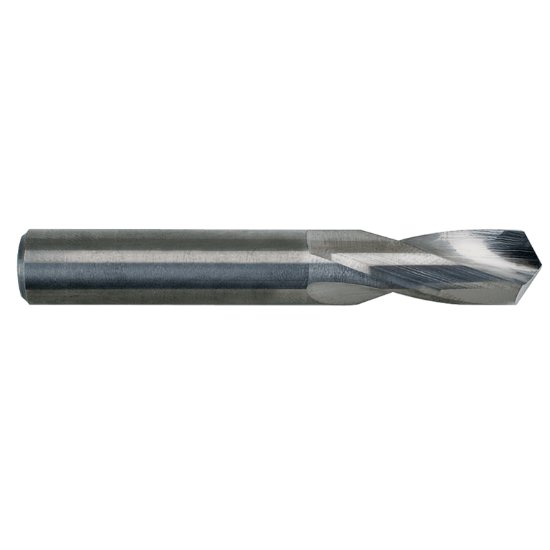

Picture of M.A. Ford 22642120A Carbide Drill Solid Carbide 118° 0.421 Dia 0.421 Shank 3.740 OAL 2 Flute 1.850 Flute Length Carbide AlTiN

M.A. Ford 22642120A Carbide Drill Solid Carbide 118° 0.421 Dia 0.421 Shank 3.740 OAL 2 Flute 1.850 Flute Length Carbide AlTiN

Part Number: MAF14928 ISO: 22642120A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1116758
Vendor: Sussex Tool and Supply
$86.69
M.A. FORD 22642120A 10.7MM DIN 6539 ALTIMA Carbide AlTiN Twister® GP 3.0XD Flute 1.8500 46.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.4213 10.70MM
Overall Length 3.7400 95.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4213 10.70MM
Flutes/Inserts 2
Tool Dia 0.4213 10.70MM
Type Of Tool Drill
Included Angle 118°
Flute Length 1.8500 46.99MM
Cut Dia Min 0.4213 10.70MM
Dia Deep 3.0x Dia
