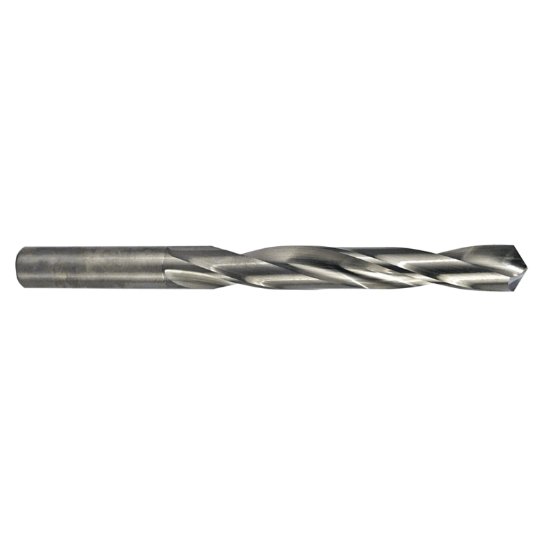

Picture of M.A. Ford 22449210A Carbide Drill Solid Carbide 118° 0.492 Dia 0.492 Shank 5.944 OAL 2 Flute 3.976 Flute Length Carbide AlTiN

M.A. Ford 22449210A Carbide Drill Solid Carbide 118° 0.492 Dia 0.492 Shank 5.944 OAL 2 Flute 3.976 Flute Length Carbide AlTiN

Part Number: MAF77505 ISO: 22449210A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115977
Vendor: Sussex Tool and Supply
$163.92
M.A. FORD 22449210A 12.5MM DIN 338 ALTIMA Carbide AlTiN Twister® GP 5.0XD Flute 3.9760 100.99MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.4921 12.50MM
Overall Length 5.9449 151.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4921 12.50MM
Flutes/Inserts 2
Tool Dia 0.4921 12.50MM
Type Of Tool Drill
Included Angle 118°
Flute Length 3.9760 100.99MM
Cut Dia Min 0.4921 12.50MM
Dia Deep 5.0x Dia
