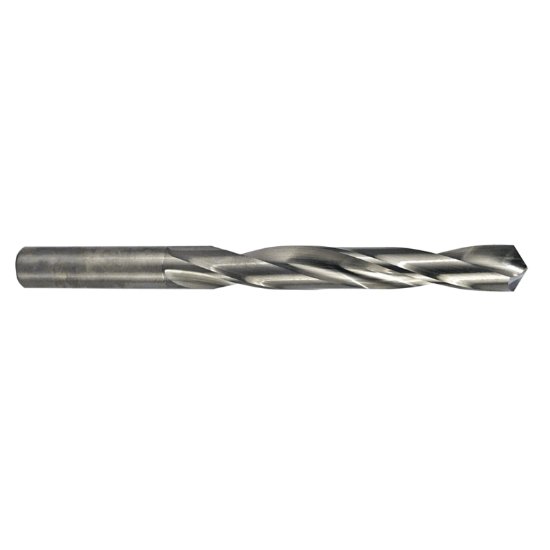

Picture of M.A. Ford 22438580 Carbide Drill Solid Carbide 118° 0.385 Dia 0.385 Shank 5.236 OAL 2 Flute 3.425 Flute Length Carbide

M.A. Ford 22438580 Carbide Drill Solid Carbide 118° 0.385 Dia 0.385 Shank 5.236 OAL 2 Flute 3.425 Flute Length Carbide

Part Number: MAF24695 ISO: 22438580

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115945
Vendor: Sussex Tool and Supply
$92.34
M.A. FORD 22438580 9.80MM DIN 338 10% CARB Carbide Uncoated Twister® GP 5.0XD Flute 3.4250 87.00MM Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Mach Side Connection Size 0.3858 9.80MM
Overall Length 5.2362 133.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3858 9.80MM - W
Flutes/Inserts 2
Tool Dia 0.3858 9.80MM
Type Of Tool Drill
Included Angle 118°
Flute Length 3.4250 87.00MM
Cut Dia Min 0.3858 9.80MM
Dia Deep 5.0x Dia
