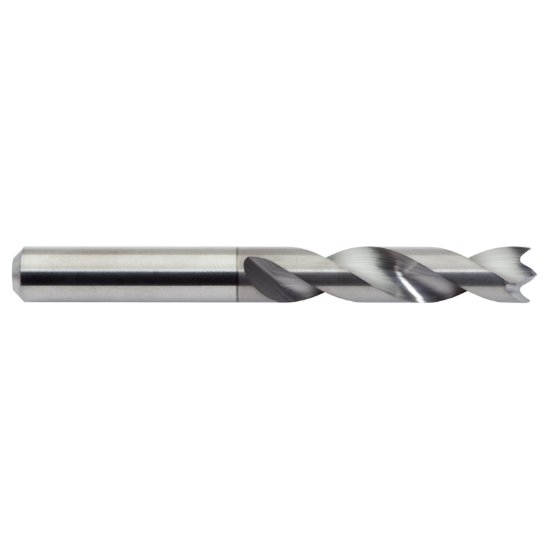

Picture of M.A. Ford 20750000CE Carbide Drill Solid Carbide Spur 0.500 Dia 0.500 Shank 3.750 OAL 2 Flute 2.125 Flute Length Carbide CERAedge®

M.A. Ford 20750000CE Carbide Drill Solid Carbide Spur 0.500 Dia 0.500 Shank 3.750 OAL 2 Flute 2.125 Flute Length Carbide CERAedge®

Part Number: MAF27437 ISO: 20750000CE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115725
Vendor: Sussex Tool and Supply
$190.28
M.A. FORD 20750000CE 1/2 SPUR PT CERAEDGE Carbide CERAedge® Twister® HP Flute 2.1250 53.98MM Carbide CERAedge™ is a new coating introduced by MA Ford a while back that is starting to show some tremendous performance improvements when compared to amorphous diamond coatings.  It combines the heat resistance of conventional AlTiN coating with the hardness and smoothness of amorphous diamond coatings.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Spur Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite
Coating CERAedge®
Mach Side Connection Size 0.5000 12.70MM
Overall Length 3.7500 95.25MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Type Of Tool Drill
Flute Length 2.1250 53.98MM
Cut Dia Min 0.5000 12.70MM - 1/2
Drill Length Type Standard
