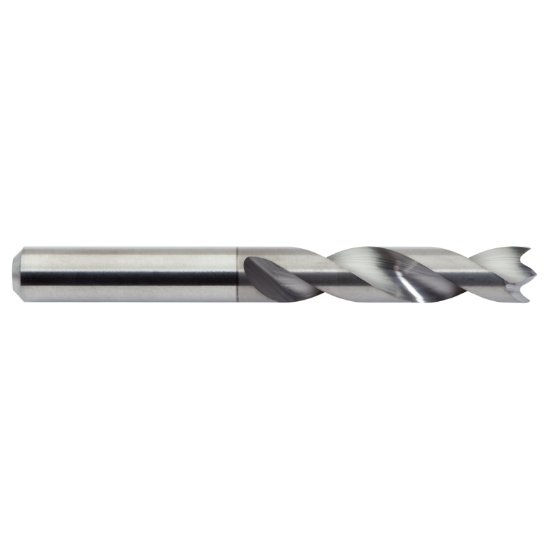

Picture of M.A. Ford 20743750CE Carbide Drill Solid Carbide Spur 0.437 Dia 0.437 Shank 3.437 OAL 2 Flute 1.875 Flute Length Carbide CERAedge®

M.A. Ford 20743750CE Carbide Drill Solid Carbide Spur 0.437 Dia 0.437 Shank 3.437 OAL 2 Flute 1.875 Flute Length Carbide CERAedge®

Part Number: MAF27419 ISO: 20743750CE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115718
Vendor: Sussex Tool and Supply
$173.07
M.A. FORD 20743750CE 7/16 SPUR PT CERAEDGE Carbide CERAedge® Twister® HP Flute 1.8750 47.63MM Carbide CERAedge™ is a new coating introduced by MA Ford a while back that is starting to show some tremendous performance improvements when compared to amorphous diamond coatings.  It combines the heat resistance of conventional AlTiN coating with the hardness and smoothness of amorphous diamond coatings.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Spur Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite
Coating CERAedge®
Mach Side Connection Size 0.4375 11.11MM
Overall Length 3.4375 87.31MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Flutes/Inserts 2
Tool Dia 0.4375 11.11MM - 7/16
Type Of Tool Drill
Flute Length 1.8750 47.63MM
Cut Dia Min 0.4375 11.11MM - 7/16
Drill Length Type Standard
