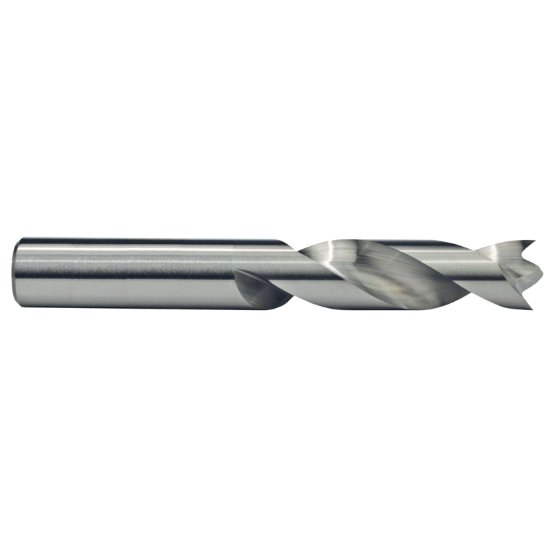

Picture of M.A. Ford 20743750A Carbide Drill Solid Carbide Spur 0.437 Dia 0.437 Shank 3.437 OAL 2 Flute 1.875 Flute Length Carbide AlTiN

M.A. Ford 20743750A Carbide Drill Solid Carbide Spur 0.437 Dia 0.437 Shank 3.437 OAL 2 Flute 1.875 Flute Length Carbide AlTiN

Part Number: MAF75520 ISO: 20743750A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115717
Vendor: Sussex Tool and Supply
$140.84
M.A. FORD 20743750A 20743750 ALTIMA Carbide AlTiN Twister® GP Flute 1.8750 47.63MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Spur Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.4375 11.11MM
Overall Length 3.4375 87.31MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Flutes/Inserts 2
Tool Dia 0.4375 11.11MM - 7/16
Type Of Tool Drill
Flute Length 1.8750 47.63MM
Cut Dia Min 0.4375 11.11MM - 7/16
Drill Length Type Standard
