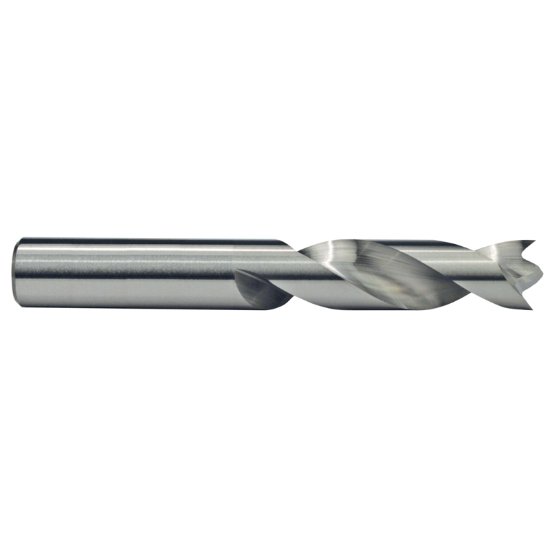

Picture of M.A. Ford 20743310A Carbide Drill Solid Carbide Spur 0.433 Dia 0.433 Shank 3.425 OAL 2 Flute 1.870 Flute Length Carbide AlTiN

M.A. Ford 20743310A Carbide Drill Solid Carbide Spur 0.433 Dia 0.433 Shank 3.425 OAL 2 Flute 1.870 Flute Length Carbide AlTiN

Part Number: MAF77422 ISO: 20743310A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115715
Vendor: Sussex Tool and Supply
$140.84
M.A. FORD 20743310A 11MM SPUR POINT ALTIMA Carbide AlTiN Twister® GP Flute 1.8700 47.50MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Spur Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.4331 11.00MM
Overall Length 3.4252 87.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4331 11.00MM
Flutes/Inserts 2
Tool Dia 0.4331 11.00MM
Type Of Tool Drill
Flute Length 1.8700 47.50MM
Cut Dia Min 0.4331 11.00MM
Drill Length Type Standard
