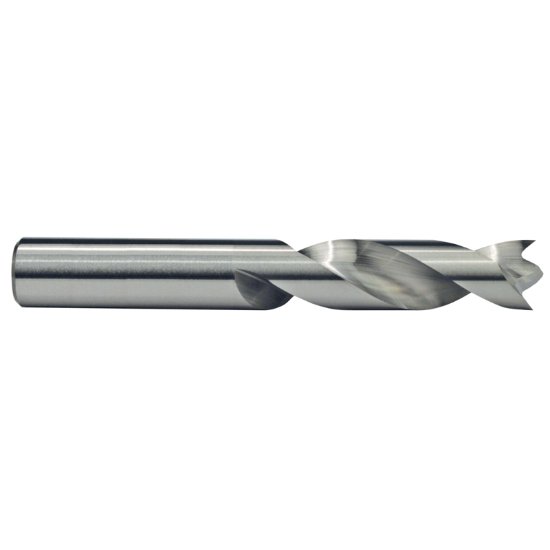

Picture of M.A. Ford 20741300 Carbide Drill Solid Carbide Spur 0.413 Dia 0.413 Shank 3.375 OAL 2 Flute 1.813 Flute Length Carbide

M.A. Ford 20741300 Carbide Drill Solid Carbide Spur 0.413 Dia 0.413 Shank 3.375 OAL 2 Flute 1.813 Flute Length Carbide

Part Number: MAF27406 ISO: 20741300

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115711
Vendor: Sussex Tool and Supply
$125.97
M.A. FORD 20741300 Z SPUR POINT DRILL Carbide Uncoated Twister® GP Flute 1.8130 46.05MM Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Spur Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Mach Side Connection Size 0.4130 10.49MM
Overall Length 3.3750 85.73MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4130 10.49MM - Z
Flutes/Inserts 2
Tool Dia 0.4133 10.50MM
Type Of Tool Drill
Flute Length 1.8130 46.05MM
Cut Dia Min 0.4133 10.50MM - Z
Drill Length Type Standard
