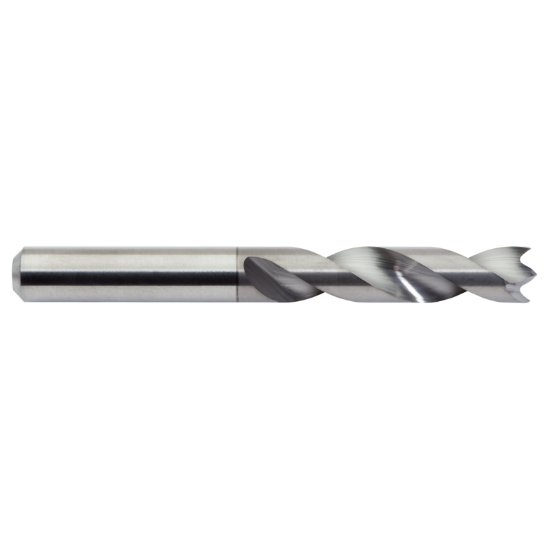

Picture of M.A. Ford 20740400CE Carbide Drill Solid Carbide Spur 0.404 Dia 0.404 Shank 3.312 OAL 2 Flute 1.750 Flute Length Carbide CERAedge®

M.A. Ford 20740400CE Carbide Drill Solid Carbide Spur 0.404 Dia 0.404 Shank 3.312 OAL 2 Flute 1.750 Flute Length Carbide CERAedge®

Part Number: MAF27401 ISO: 20740400CE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115709
Vendor: Sussex Tool and Supply
$165.05
M.A. FORD 20740400CE Y SPUR PT CERAEDGE Carbide CERAedge® Twister® HP Flute 1.7500 44.45MM Carbide CERAedge™ is a new coating introduced by MA Ford a while back that is starting to show some tremendous performance improvements when compared to amorphous diamond coatings.  It combines the heat resistance of conventional AlTiN coating with the hardness and smoothness of amorphous diamond coatings.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Spur Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite
Coating CERAedge®
Mach Side Connection Size 0.4040 10.26MM
Overall Length 3.3125 84.14MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4040 10.26MM - Y
Flutes/Inserts 2
Tool Dia 0.4040 10.26MM - Y
Type Of Tool Drill
Flute Length 1.7500 44.45MM
Cut Dia Min 0.4040 10.26MM - Y
Drill Length Type Standard
