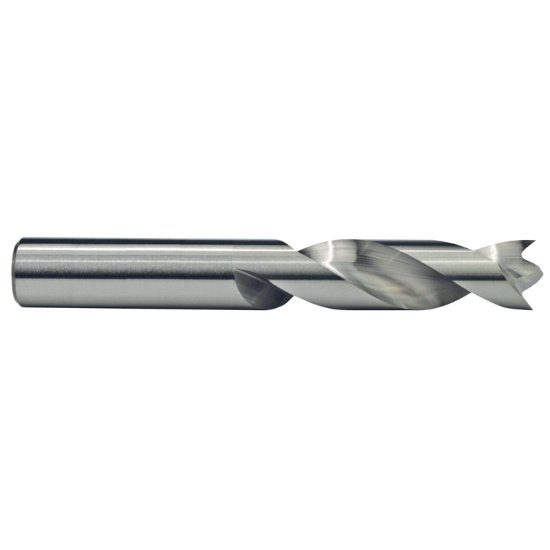

Picture of M.A. Ford 20740400 Carbide Drill Solid Carbide Spur 0.404 Dia 0.404 Shank 3.312 OAL 2 Flute 1.750 Flute Length Carbide

M.A. Ford 20740400 Carbide Drill Solid Carbide Spur 0.404 Dia 0.404 Shank 3.312 OAL 2 Flute 1.750 Flute Length Carbide

Part Number: MAF27400 ISO: 20740400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115708
Vendor: Sussex Tool and Supply
$120.24
M.A. FORD 20740400 Y SPUR POINT DRILL Carbide Uncoated Twister® GP Flute 1.7500 44.45MM Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Spur Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Mach Side Connection Size 0.4040 10.26MM
Overall Length 3.3125 84.14MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4040 10.26MM - Y
Flutes/Inserts 2
Tool Dia 0.4040 10.26MM - Y
Type Of Tool Drill
Flute Length 1.7500 44.45MM
Cut Dia Min 0.4040 10.26MM - Y
Drill Length Type Standard
