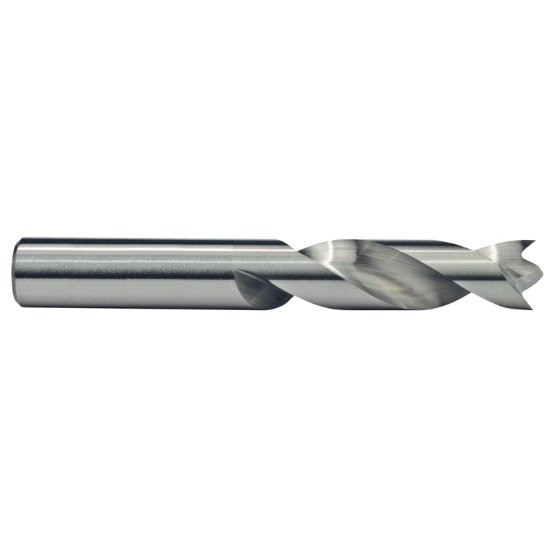

Picture of M.A. Ford 20735800 Carbide Drill Solid Carbide Spur 0.358 Dia 0.358 Shank 3.062 OAL 2 Flute 1.563 Flute Length Carbide

M.A. Ford 20735800 Carbide Drill Solid Carbide Spur 0.358 Dia 0.358 Shank 3.062 OAL 2 Flute 1.563 Flute Length Carbide

Part Number: MAF27370 ISO: 20735800

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115696
Vendor: Sussex Tool and Supply
$93.58
M.A. FORD 20735800 T SPUR POINT DRILL Carbide Uncoated Twister® GP Flute 1.5630 39.70MM Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Spur Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Mach Side Connection Size 0.3580 9.09MM
Overall Length 3.0625 77.79MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3580 9.09MM - T
Flutes/Inserts 2
Tool Dia 0.3580 9.09MM - T
Type Of Tool Drill
Flute Length 1.5630 39.70MM
Cut Dia Min 0.3580 9.09MM - T
Drill Length Type Standard
