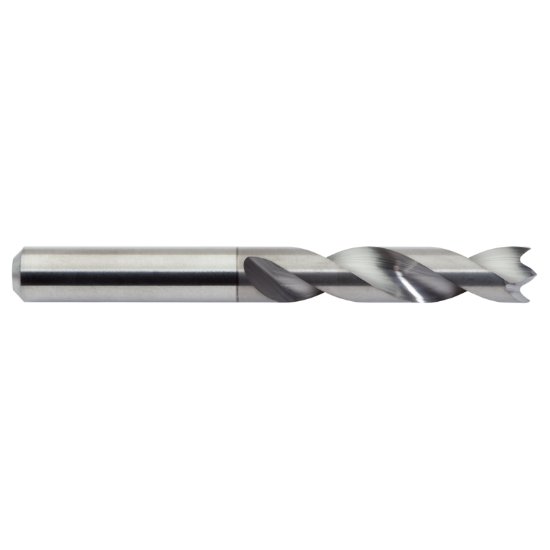

Picture of M.A. Ford 20734800CE Carbide Drill Solid Carbide Spur 0.348 Dia 0.348 Shank 3.062 OAL 2 Flute 1.563 Flute Length Carbide CERAedge®

M.A. Ford 20734800CE Carbide Drill Solid Carbide Spur 0.348 Dia 0.348 Shank 3.062 OAL 2 Flute 1.563 Flute Length Carbide CERAedge®

Part Number: MAF14941 ISO: 20734800CE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115694
Vendor: Sussex Tool and Supply
$119.49
M.A. FORD 20734800CE S SPUR POINT CERAEDGE Carbide CERAedge® Twister® GP Flute 1.5630 39.70MM Carbide CERAedge™ is a new coating introduced by MA Ford a while back that is starting to show some tremendous performance improvements when compared to amorphous diamond coatings.  It combines the heat resistance of conventional AlTiN coating with the hardness and smoothness of amorphous diamond coatings.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Spur Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating CERAedge®
Mach Side Connection Size 0.3480 8.84MM
Overall Length 3.0625 77.79MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3480 8.84MM - S
Flutes/Inserts 2
Tool Dia 0.3480 8.84MM - S
Type Of Tool Drill
Flute Length 1.5630 39.70MM
Cut Dia Min 0.3480 8.84MM - S
Drill Length Type Standard
