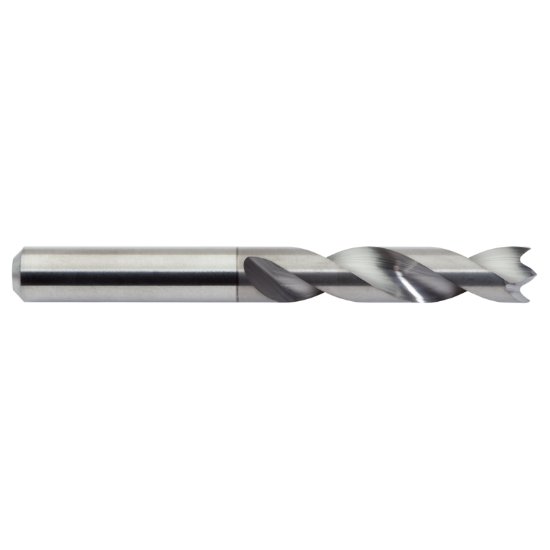

Picture of M.A. Ford 20733460CE Carbide Drill Solid Carbide Spur 0.334 Dia 0.334 Shank 2.952 OAL 2 Flute 1.555 Flute Length Carbide CERAedge®

M.A. Ford 20733460CE Carbide Drill Solid Carbide Spur 0.334 Dia 0.334 Shank 2.952 OAL 2 Flute 1.555 Flute Length Carbide CERAedge®

Part Number: MAF17051 ISO: 20733460CE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115690
Vendor: Sussex Tool and Supply
$112.85
M.A. FORD 20733460CE 20733460 CERAEDGE COAT Carbide CERAedge® Twister® GP Flute 1.5550 39.50MM Carbide CERAedge™ is a new coating introduced by MA Ford a while back that is starting to show some tremendous performance improvements when compared to amorphous diamond coatings.  It combines the heat resistance of conventional AlTiN coating with the hardness and smoothness of amorphous diamond coatings.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Spur Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating CERAedge®
Mach Side Connection Size 0.3346 8.50MM
Overall Length 2.9527 75.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3334 8.47MM
Flutes/Inserts 2
Tool Dia 0.3346 8.50MM
Type Of Tool Drill
Flute Length 1.5550 39.50MM
Cut Dia Min 0.3346 8.50MM
Drill Length Type Standard
