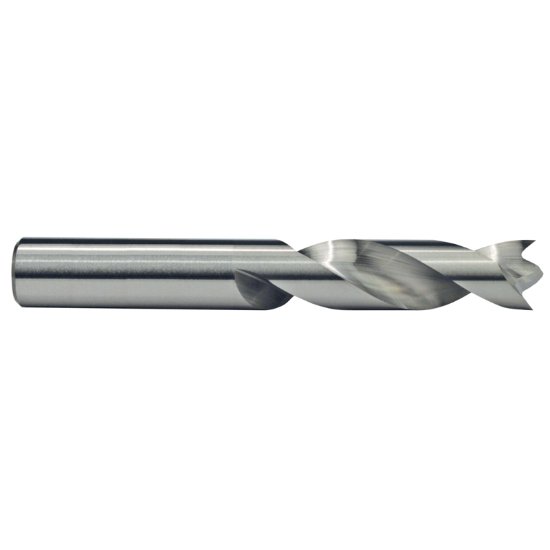

Picture of M.A. Ford 20731600A Carbide Drill Solid Carbide Spur 0.316 Dia 0.316 Shank 2.937 OAL 2 Flute 1.563 Flute Length Carbide AlTiN

M.A. Ford 20731600A Carbide Drill Solid Carbide Spur 0.316 Dia 0.316 Shank 2.937 OAL 2 Flute 1.563 Flute Length Carbide AlTiN

Part Number: MAF75519 ISO: 20731600A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115685
Vendor: Sussex Tool and Supply
$82.37
M.A. FORD 20731600A O SPUR PT DRL ALTIMA Carbide AlTiN Twister® GP Flute 1.5630 39.70MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Spur Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.3160 8.03MM
Overall Length 2.9375 74.61MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3160 8.03MM - O
Flutes/Inserts 2
Tool Dia 0.3160 8.03MM - O
Type Of Tool Drill
Flute Length 1.5630 39.70MM
Cut Dia Min 0.3160 8.03MM - O
Drill Length Type Standard
