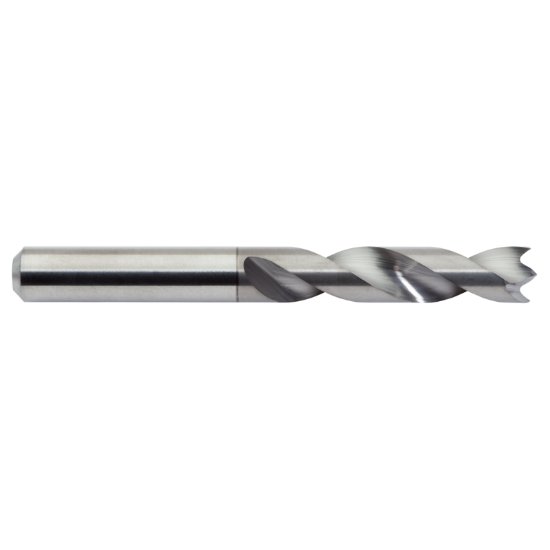

Picture of M.A. Ford 20731250CE Carbide Drill Solid Carbide Spur 0.312 Dia 0.312 Shank 2.812 OAL 2 Flute 1.500 Flute Length Carbide CERAedge®

M.A. Ford 20731250CE Carbide Drill Solid Carbide Spur 0.312 Dia 0.312 Shank 2.812 OAL 2 Flute 1.500 Flute Length Carbide CERAedge®

Part Number: MAF27338 ISO: 20731250CE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115681
Vendor: Sussex Tool and Supply
$94.88
M.A. FORD 20731250CE 5/16 SPUR PT CERAEDGE Carbide CERAedge® Twister® HP Flute 1.5000 38.10MM Carbide CERAedge™ is a new coating introduced by MA Ford a while back that is starting to show some tremendous performance improvements when compared to amorphous diamond coatings.  It combines the heat resistance of conventional AlTiN coating with the hardness and smoothness of amorphous diamond coatings.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Spur Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite
Coating CERAedge®
Mach Side Connection Size 0.3125 7.94MM
Overall Length 2.8125 71.44MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 2
Tool Dia 0.3125 7.94MM - 5/16
Type Of Tool Drill
Flute Length 1.5000 38.10MM
Cut Dia Min 0.3125 7.94MM - 5/16
Drill Length Type Standard
