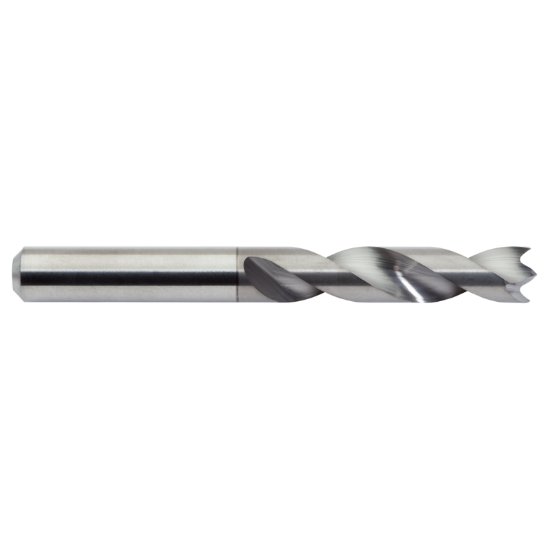

Picture of M.A. Ford 20729500CE Carbide Drill Solid Carbide Spur 0.295 Dia 0.295 Shank 2.750 OAL 2 Flute 1.375 Flute Length Carbide CERAedge®

M.A. Ford 20729500CE Carbide Drill Solid Carbide Spur 0.295 Dia 0.295 Shank 2.750 OAL 2 Flute 1.375 Flute Length Carbide CERAedge®

Part Number: MAF27326 ISO: 20729500CE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115675
Vendor: Sussex Tool and Supply
$94.74
M.A. FORD 20729500CE M SPUR PT CERAEDGE Carbide CERAedge® Twister® HP Flute 1.3750 34.93MM Carbide CERAedge™ is a new coating introduced by MA Ford a while back that is starting to show some tremendous performance improvements when compared to amorphous diamond coatings.  It combines the heat resistance of conventional AlTiN coating with the hardness and smoothness of amorphous diamond coatings.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Spur Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite
Coating CERAedge®
Mach Side Connection Size 0.2950 7.49MM
Overall Length 2.7500 69.85MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2950 7.49MM - M
Flutes/Inserts 2
Tool Dia 0.2950 7.49MM - M
Type Of Tool Drill
Flute Length 1.3750 34.93MM
Cut Dia Min 0.2950 7.49MM - M
Drill Length Type Standard
