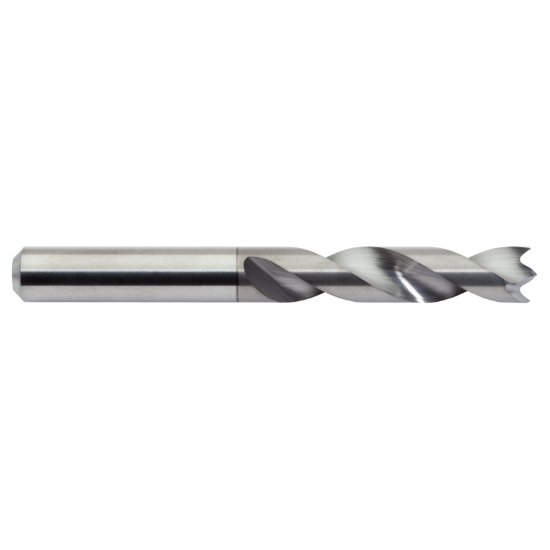

Picture of M.A. Ford 20728100CE Carbide Drill Solid Carbide Spur 0.281 Dia 0.281 Shank 2.687 OAL 2 Flute 1.375 Flute Length Carbide CERAedge®

M.A. Ford 20728100CE Carbide Drill Solid Carbide Spur 0.281 Dia 0.281 Shank 2.687 OAL 2 Flute 1.375 Flute Length Carbide CERAedge®

Part Number: MAF27317 ISO: 20728100CE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115669
Vendor: Sussex Tool and Supply
$94.52
M.A. FORD 20728100CE K SPUR PT CERAEDGE Carbide CERAedge® Twister® HP Flute 1.3750 34.93MM Carbide CERAedge™ is a new coating introduced by MA Ford a while back that is starting to show some tremendous performance improvements when compared to amorphous diamond coatings.  It combines the heat resistance of conventional AlTiN coating with the hardness and smoothness of amorphous diamond coatings.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Spur Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite
Coating CERAedge®
Mach Side Connection Size 0.2813 7.15MM
Overall Length 2.6875 68.26MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2810 7.14MM - 9/32 - K
Flutes/Inserts 2
Tool Dia 0.2810 7.14MM - K
Type Of Tool Drill
Flute Length 1.3750 34.93MM
Cut Dia Min 0.2810 7.14MM - 9/32 - K
Drill Length Type Standard
