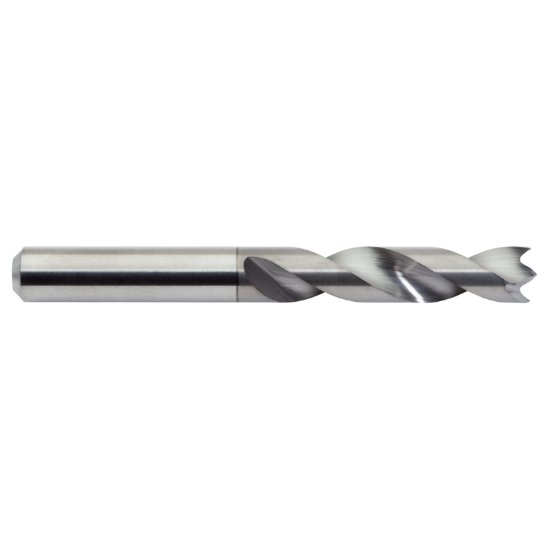

Picture of M.A. Ford 20727560CE Carbide Drill Solid Carbide Spur 0.275 Dia 0.275 Shank 2.677 OAL 2 Flute 1.378 Flute Length Carbide CERAedge®

M.A. Ford 20727560CE Carbide Drill Solid Carbide Spur 0.275 Dia 0.275 Shank 2.677 OAL 2 Flute 1.378 Flute Length Carbide CERAedge®

Part Number: MAF27311 ISO: 20727560CE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115666
Vendor: Sussex Tool and Supply
$93.36
M.A. FORD 20727560CE 7.00MM SPUR PT CERAEDGE Carbide CERAedge® Twister® HP Flute 1.3780 35.00MM Carbide CERAedge™ is a new coating introduced by MA Ford a while back that is starting to show some tremendous performance improvements when compared to amorphous diamond coatings.  It combines the heat resistance of conventional AlTiN coating with the hardness and smoothness of amorphous diamond coatings.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Spur Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite
Coating CERAedge®
Mach Side Connection Size 0.2756 7.00MM
Overall Length 2.6772 68.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2756 7.00MM
Flutes/Inserts 2
Tool Dia 0.2756 7.00MM
Type Of Tool Drill
Flute Length 1.3780 35.00MM
Cut Dia Min 0.2756 7.00MM
Drill Length Type Standard
