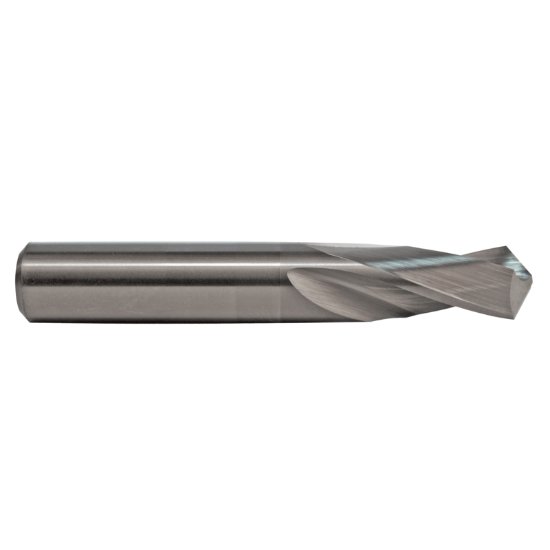

Picture of M.A. Ford 20678120 Carbide Drill Solid Carbide 118° 0.781 Dia 0.781 Shank 4.000 OAL 2 Flute 2.250 Flute Length Carbide

M.A. Ford 20678120 Carbide Drill Solid Carbide 118° 0.781 Dia 0.781 Shank 4.000 OAL 2 Flute 2.250 Flute Length Carbide

Part Number: MAF26784 ISO: 20678120

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115519
Vendor: Sussex Tool and Supply
$158.72
M.A. FORD 20678120 25/32 STUB TWIST DRILL Carbide Uncoated Twister® GP Flute 2.2500 57.15MM Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Mach Side Connection Size 0.7813 19.85MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7813 19.85MM - 25/32
Flutes/Inserts 2
Tool Dia 0.7813 19.85MM - 25/32
Type Of Tool Drill
Included Angle 118°
Flute Length 2.2500 57.15MM
Cut Dia Min 0.7810 19.84MM - 25/32
Drill Length Type Stub
