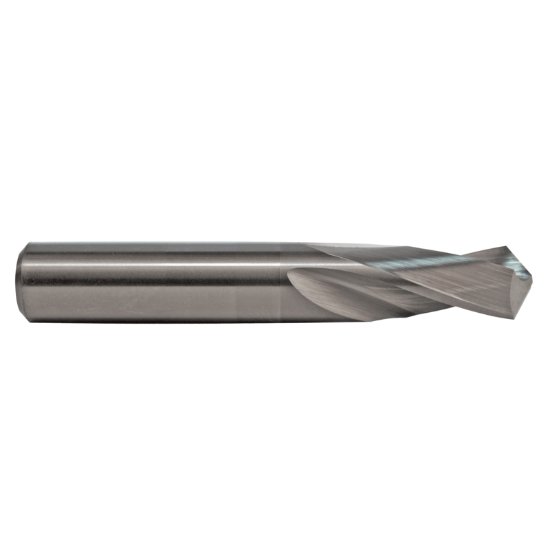

Picture of M.A. Ford 20673440 Carbide Drill Solid Carbide 118° 0.734 Dia 0.734 Shank 4.000 OAL 2 Flute 2.125 Flute Length Carbide

M.A. Ford 20673440 Carbide Drill Solid Carbide 118° 0.734 Dia 0.734 Shank 4.000 OAL 2 Flute 2.125 Flute Length Carbide

Part Number: MAF26772 ISO: 20673440

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115515
Vendor: Sussex Tool and Supply
$145.31
M.A. FORD 20673440 47/64 STUB TWIST DRILL Carbide Uncoated Twister® GP Flute 2.1250 53.98MM Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Mach Side Connection Size 0.7344 18.65MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7344 18.65MM - 47/64
Flutes/Inserts 2
Tool Dia 0.7344 18.65MM - 47/64
Type Of Tool Drill
Included Angle 118°
Flute Length 2.1250 53.98MM
Cut Dia Min 0.7344 18.65MM - 47/64
Drill Length Type Stub
