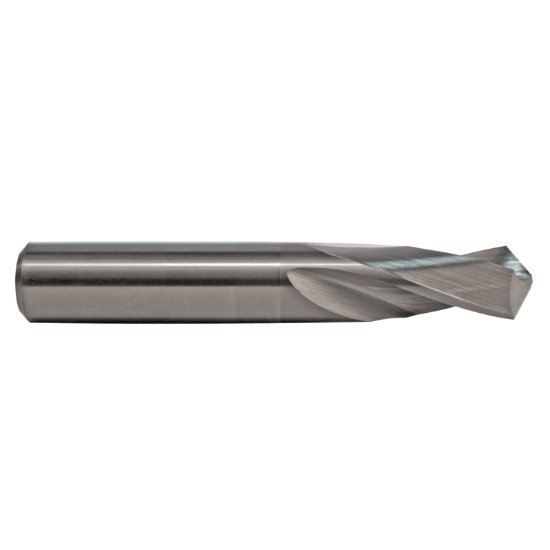

Picture of M.A. Ford 20668750A Carbide Drill Solid Carbide 118° 0.687 Dia 0.687 Shank 4.000 OAL 2 Flute 1.875 Flute Length Carbide AlTiN

M.A. Ford 20668750A Carbide Drill Solid Carbide 118° 0.687 Dia 0.687 Shank 4.000 OAL 2 Flute 1.875 Flute Length Carbide AlTiN

Part Number: MAF77415 ISO: 20668750A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115512
Vendor: Sussex Tool and Supply
$169.59
M.A. FORD 20668750A 11/16 STUB DRL ALTIMA Carbide AlTiN Twister® GP Flute 1.8750 47.63MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.6875 17.46MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6875 17.46MM - 11/16
Flutes/Inserts 2
Tool Dia 0.6875 17.46MM - 11/16
Type Of Tool Drill
Included Angle 118°
Flute Length 1.8750 47.63MM
Cut Dia Min 0.6875 17.46MM - 11/16
Drill Length Type Stub
