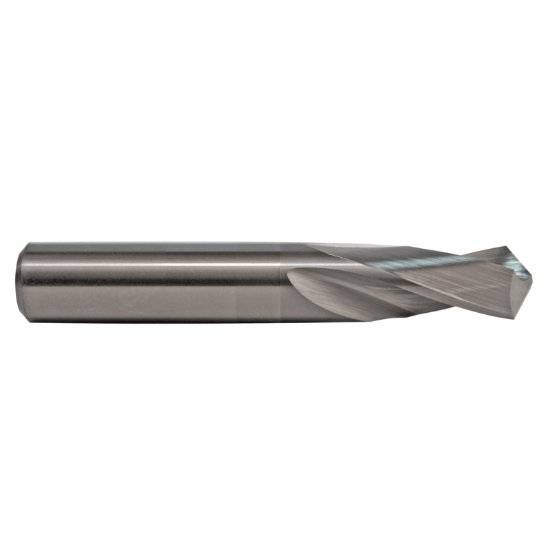

Picture of M.A. Ford 20668750 Carbide Drill Solid Carbide 118° 0.687 Dia 0.687 Shank 4.000 OAL 2 Flute 1.875 Flute Length Carbide

M.A. Ford 20668750 Carbide Drill Solid Carbide 118° 0.687 Dia 0.687 Shank 4.000 OAL 2 Flute 1.875 Flute Length Carbide

Part Number: MAF26754 ISO: 20668750

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115511
Vendor: Sussex Tool and Supply
$130.88
M.A. FORD 20668750 11/16 STUB TWIST DRILL Carbide Uncoated Twister® GP Flute 1.8750 47.63MM Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Mach Side Connection Size 0.6875 17.46MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6875 17.46MM - 11/16
Flutes/Inserts 2
Tool Dia 0.6875 17.46MM - 11/16
Type Of Tool Drill
Included Angle 118°
Flute Length 1.8750 47.63MM
Cut Dia Min 0.6875 17.46MM - 11/16
Drill Length Type Stub
