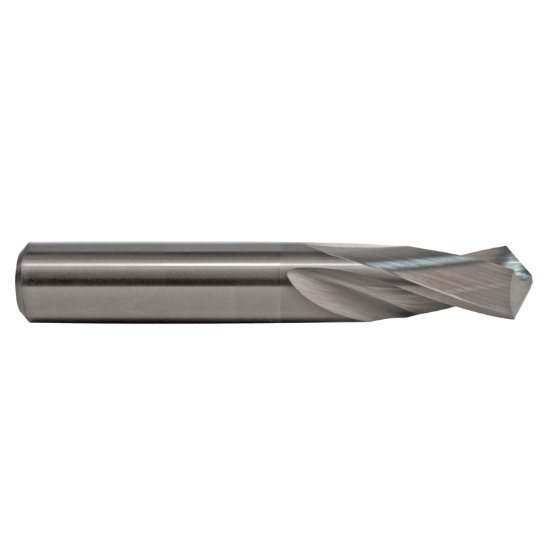

Picture of M.A. Ford 20662500A Carbide Drill Solid Carbide 118° 0.625 Dia 0.625 Shank 3.500 OAL 2 Flute 1.750 Flute Length Carbide AlTiN

M.A. Ford 20662500A Carbide Drill Solid Carbide 118° 0.625 Dia 0.625 Shank 3.500 OAL 2 Flute 1.750 Flute Length Carbide AlTiN

Part Number: MAF77414 ISO: 20662500A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115505
Vendor: Sussex Tool and Supply
$141.22
M.A. FORD 20662500A 5/8 STUB DRL ALTIMA Carbide AlTiN Twister® GP Flute 1.7500 44.45MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.6250 15.88MM
Overall Length 3.5000 88.90MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.6250 15.88MM - 5/8
Type Of Tool Drill
Included Angle 118°
Flute Length 1.7500 44.45MM
Cut Dia Min 0.6250 15.88MM - 5/8
Drill Length Type Stub
