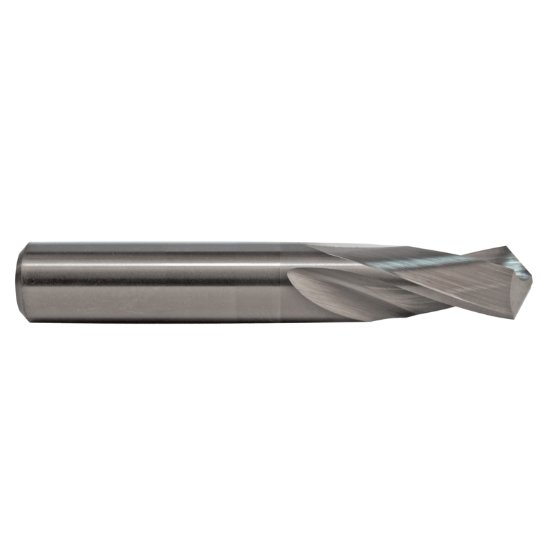

Picture of M.A. Ford 20662500 Carbide Drill Solid Carbide 118° 0.625 Dia 0.625 Shank 3.500 OAL 2 Flute 1.750 Flute Length Carbide

M.A. Ford 20662500 Carbide Drill Solid Carbide 118° 0.625 Dia 0.625 Shank 3.500 OAL 2 Flute 1.750 Flute Length Carbide

Part Number: MAF26733 ISO: 20662500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115504
Vendor: Sussex Tool and Supply
$110.27
M.A. FORD 20662500 5/8 STUB TWIST DRILL Carbide Uncoated Twister® GP Flute 1.7500 44.45MM Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Mach Side Connection Size 0.6250 15.88MM
Overall Length 3.5000 88.90MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.6250 15.88MM - 5/8
Type Of Tool Drill
Included Angle 118°
Flute Length 1.7500 44.45MM
Cut Dia Min 0.6250 15.88MM - 5/8
Drill Length Type Stub
