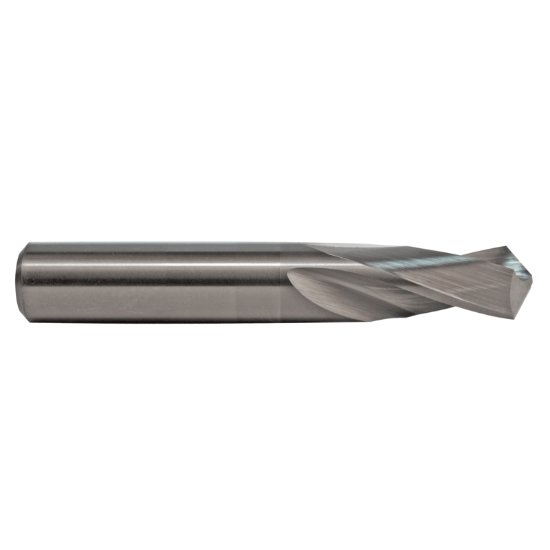

Picture of M.A. Ford 20660940 Carbide Drill Solid Carbide 118° 0.609 Dia 0.609 Shank 3.500 OAL 2 Flute 1.750 Flute Length Carbide

M.A. Ford 20660940 Carbide Drill Solid Carbide 118° 0.609 Dia 0.609 Shank 3.500 OAL 2 Flute 1.750 Flute Length Carbide

Part Number: MAF26727 ISO: 20660940

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115503
Vendor: Sussex Tool and Supply
$104.08
M.A. FORD 20660940 39/64 STUB TWIST DRILL Carbide Uncoated Twister® GP Flute 1.7500 44.45MM Carbide
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Mach Side Connection Size 0.6094 15.48MM
Overall Length 3.5000 88.90MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6094 15.48MM - 39/64
Flutes/Inserts 2
Tool Dia 0.6094 15.48MM - 39/64
Type Of Tool Drill
Included Angle 118°
Flute Length 1.7500 44.45MM
Cut Dia Min 0.6094 15.48MM - 39/64
Drill Length Type Stub
