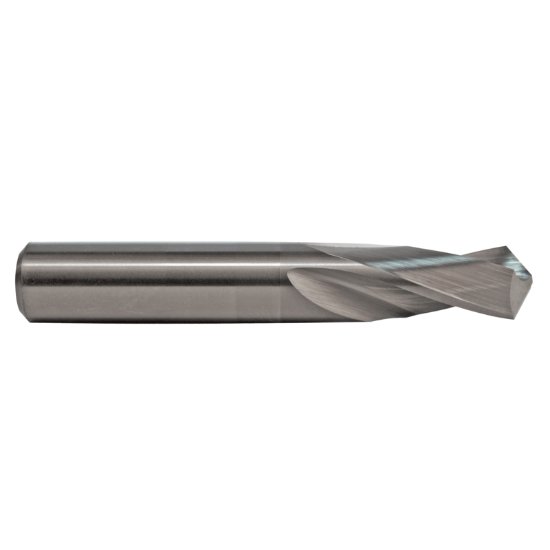

Picture of M.A. Ford 20657810A Carbide Drill Solid Carbide 118° 0.578 Dia 0.578 Shank 3.500 OAL 2 Flute 1.625 Flute Length Carbide AlTiN

M.A. Ford 20657810A Carbide Drill Solid Carbide 118° 0.578 Dia 0.578 Shank 3.500 OAL 2 Flute 1.625 Flute Length Carbide AlTiN

Part Number: MAF75512 ISO: 20657810A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115501
Vendor: Sussex Tool and Supply
$110.73
M.A. FORD 20657810A 37/64 STUB DRL ALTIMA Carbide AlTiN Twister® GP Flute 1.6250 41.28MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.5781 14.68MM
Overall Length 3.5000 88.90MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5781 14.68MM - 37/64
Flutes/Inserts 2
Tool Dia 0.5781 14.68MM - 37/64
Type Of Tool Drill
Included Angle 118°
Flute Length 1.6250 41.28MM
Cut Dia Min 0.5781 14.68MM - 37/64
Drill Length Type Stub
