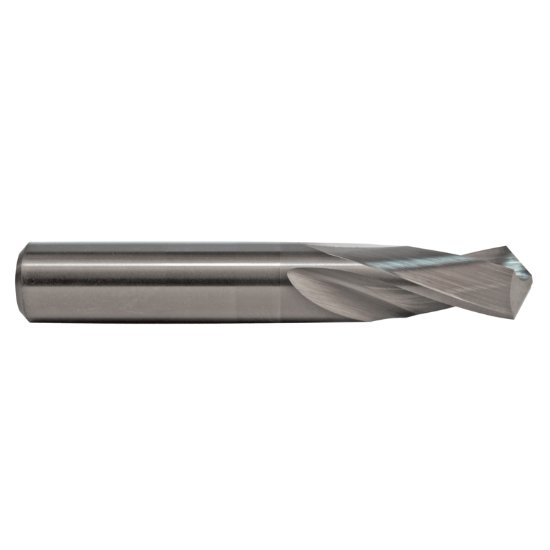

Picture of M.A. Ford 20651560A Carbide Drill Solid Carbide 118° 0.515 Dia 0.515 Shank 3.500 OAL 2 Flute 1.375 Flute Length Carbide AlTiN

M.A. Ford 20651560A Carbide Drill Solid Carbide 118° 0.515 Dia 0.515 Shank 3.500 OAL 2 Flute 1.375 Flute Length Carbide AlTiN

Part Number: MAF77412 ISO: 20651560A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115493
Vendor: Sussex Tool and Supply
$91.35
M.A. FORD 20651560A 33/64 STUB DRILL ALTIMA Carbide AlTiN Twister® GP Flute 1.3750 34.93MM Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.5156 13.10MM
Overall Length 3.5000 88.90MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5156 13.10MM - 33/64
Flutes/Inserts 2
Tool Dia 0.5156 13.10MM - 33/64
Type Of Tool Drill
Included Angle 118°
Flute Length 1.3750 34.93MM
Cut Dia Min 0.5156 13.10MM - 33/64
Drill Length Type Stub
