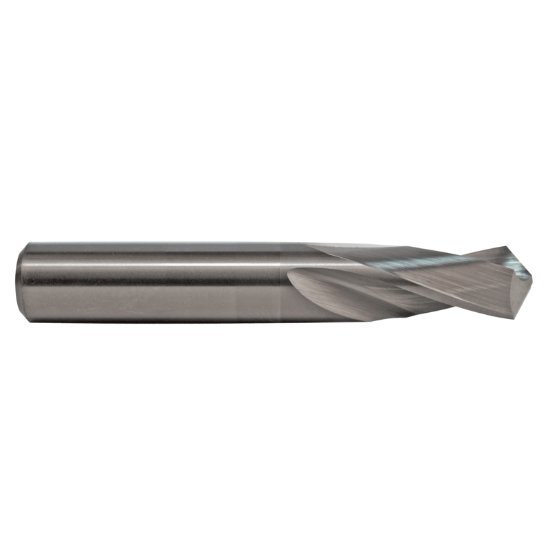

Picture of M.A. Ford 20650000T Carbide Drill Solid Carbide 118° 0.500 Dia 0.500 Shank 3.000 OAL 2 Flute 1.250 Flute Length Carbide TiN

M.A. Ford 20650000T Carbide Drill Solid Carbide 118° 0.500 Dia 0.500 Shank 3.000 OAL 2 Flute 1.250 Flute Length Carbide TiN

Part Number: MAF77411 ISO: 20650000T

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115491
Vendor: Sussex Tool and Supply
$82.52
M.A. FORD 20650000T 1/2 STUB DRL TIN Carbide TiN Twister® GP Flute 1.2500 31.75MM Carbide Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating TIN
Mach Side Connection Size 0.5000 12.70MM
Overall Length 3.0000 76.20MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Type Of Tool Drill
Included Angle 118°
Flute Length 1.2500 31.75MM
Cut Dia Min 0.5000 12.70MM - 1/2
Drill Length Type Stub
