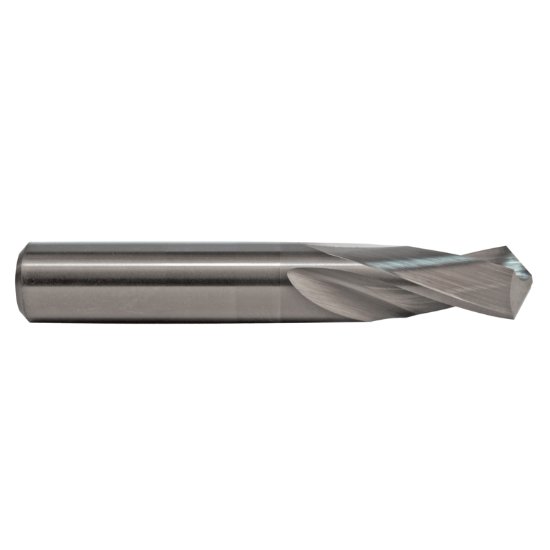

Picture of M.A. Ford 20650000C Carbide Drill Solid Carbide 118° 0.500 Dia 0.500 Shank 3.000 OAL 2 Flute 1.250 Flute Length Carbide TiCN

M.A. Ford 20650000C Carbide Drill Solid Carbide 118° 0.500 Dia 0.500 Shank 3.000 OAL 2 Flute 1.250 Flute Length Carbide TiCN

Part Number: MAF16294 ISO: 20650000C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: 1115490
Vendor: Sussex Tool and Supply
$82.52
M.A. FORD 20650000C 1/2 STUB DRILL TICN Carbide TiCN Twister® GP Flute 1.2500 31.75MM Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State Iowa
Made In USA YES
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Coating TICN
Mach Side Connection Size 0.5000 12.70MM
Overall Length 3.0000 76.20MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Type Of Tool Drill
Included Angle 118°
Flute Length 1.2500 31.75MM
Cut Dia Min 0.5000 12.70MM - 1/2
Drill Length Type Stub
